Background



Product Introduction

img_AMB82_MINI

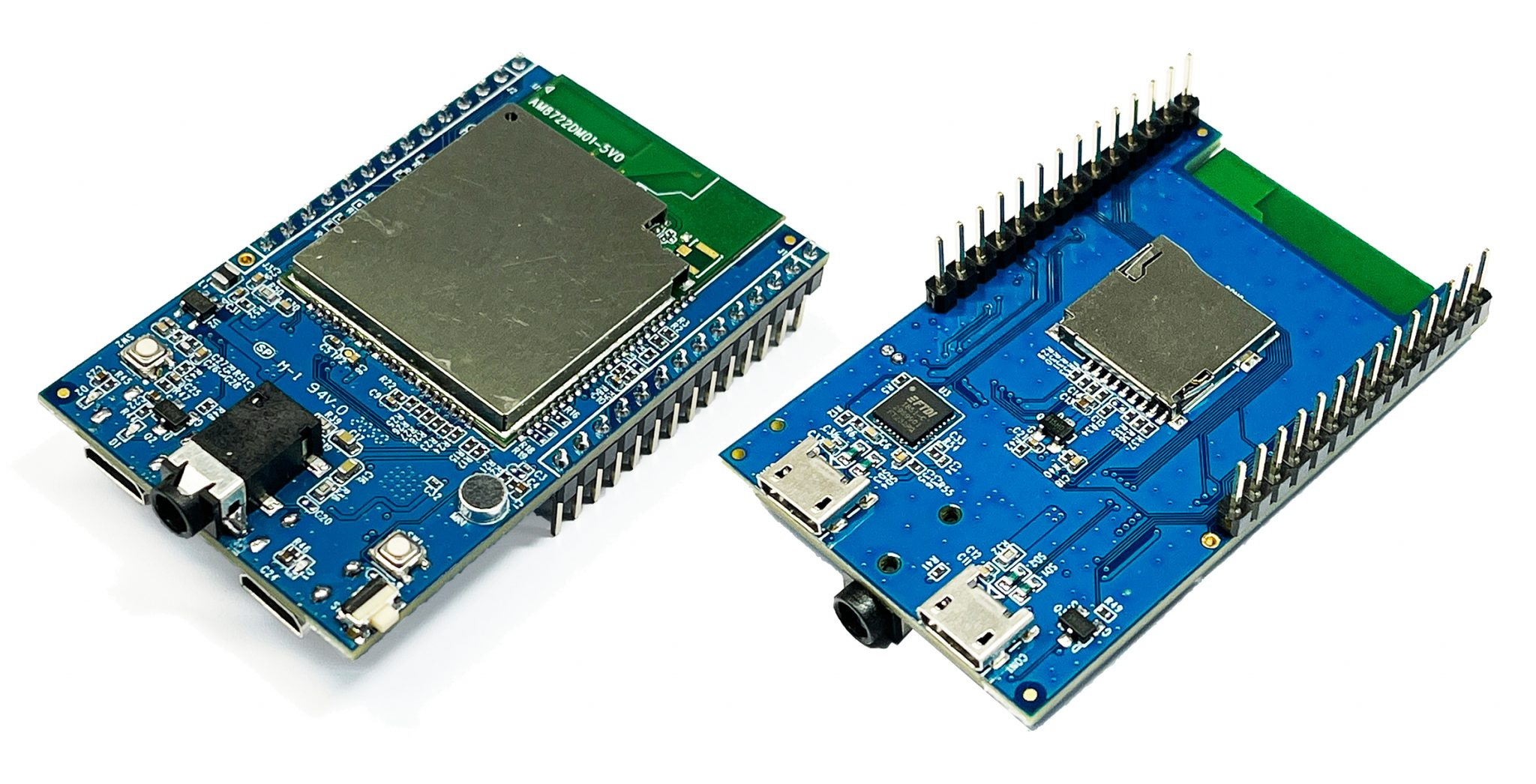

AMB82-mini

(Ameba RTL8735B)
  • MCU

    • Part Number: RTL8735B

    • 32-bit Arm v8M, up to 500MHz

  • Memory

    • 768KB ROM

    • 512KB RAM

    • 16MB Flash

    • Supports MCM embedded DDR2/DDR3L memory up to 128MB

  • Key Features

    • Integrated 802.11 a/b/g/n Wi-Fi, 2.4GHz/5GHz

    • Bluetooth Low Energy (BLE) 5.1

    • Integrated Intelligent Engine @ 0.4 TOPS

    • USB Host/Device

    • SD Host

    • ISP

    • Audio Codec

    • H.264/H.265 encoder up to 5MP or 1080p @45fps

    • Secure Boot

    • Crypto Engine

  • Other Features

    • 2 SPI interfaces

    • 1 I2C interface

    • 8 PWM interfaces

    • 3 UART interfaces

    • 3 ADC interfaces

    • 2 GDMA interfaces

    • Max 23 GPIOs

img_shopping



SDKs & Online Documents

Arduino SDKs

Arduino Online Documents

img_github_logo_arduino_pro2

Ameba Pro2

img_github_logo_arduino_d

Ameba D



FAQ and Forum
